Underfloor heating Orange Rapid

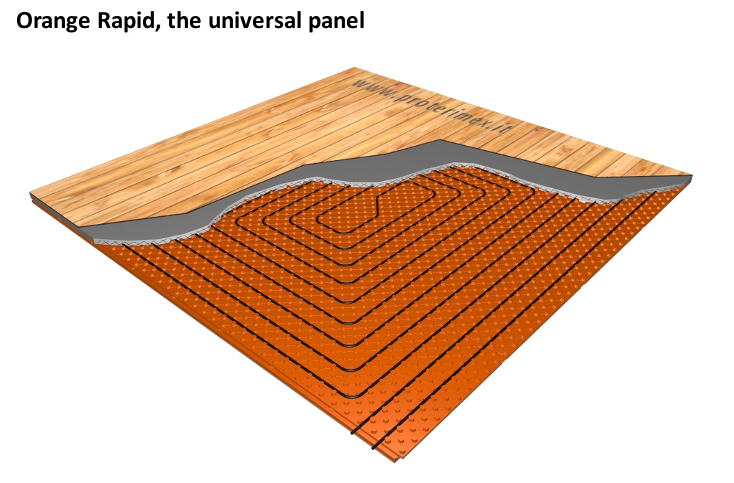

The radiant floor systems with moulded panels are composed of a layer of closed-cell polystyrene foam insulation. These are laminated with a protective plastic film against the cement screed surface.

The installation of the panels with double interlocking and penetration joints is rapid and robust. The particular profile of the studs allows for excellent locking of the tube during installation. In addition,

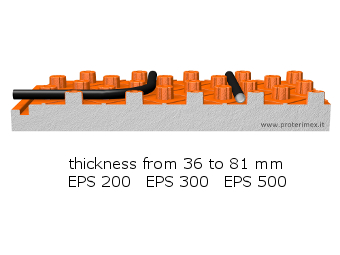

to prevent the laying of multiple layers of insulation, the panels are available with height ranging from 36 to 81 mm.



  • External dimensions 1400 x 800 mm
  • Installation pitch 50 mm
  • Thermal conductivity ʎD Calculation value W/(mk) 0,033 (EPS 200), 0,032 (EPS 300), 0,031 (EPS 500)
  • Fire resistance Euroclass E
  • Laminated with a protective plastic film th. 230 µm
  • CFC, HCFC, HBCD and HBCDD free
